Dometic™ Duo-Therm 9610005382/ 3312020.000 OEM CCC2 Air Conditioner Control Box
Air Conditioner Control Board; Comfort Control Center II; For Dometic Duo-Therm Air Conditioners And Comfort Control Center II Thermostats; Multi-Zone; Part Number 3312020.000
Dometic™ Duo-Therm 3312020.000 OEM CCC2 Air Conditioner Control Box

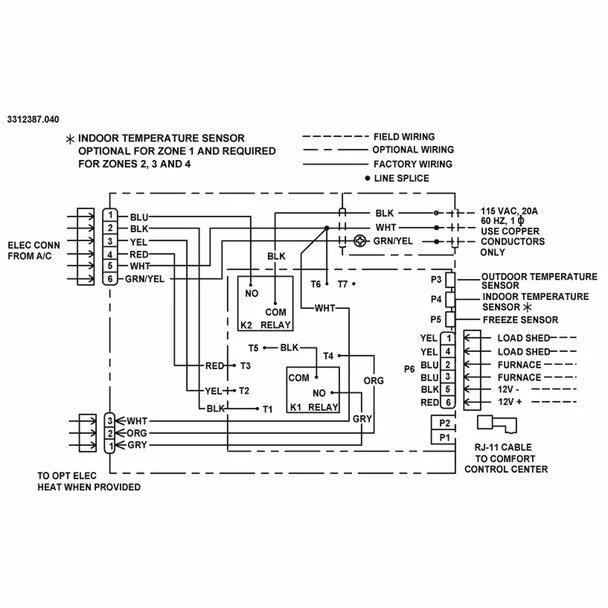

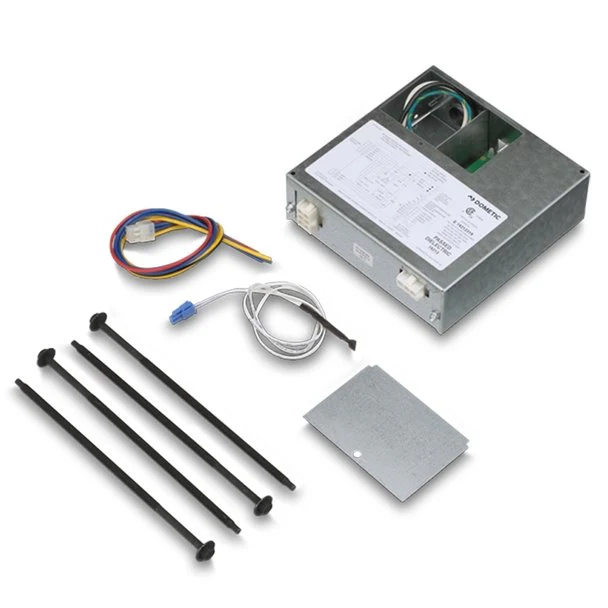

This is a replacement control box for current generation Dometic air conditioners. The control board inside the control box is compatible with Dometic's Comfort Control Center 2 thermostats. This control box has wires for a 12V connection, furnace control, load shed, and 120V connection. Compatible with a 6 pin air conditioner plug, 3 pin heat strip plug (optional), outdoor temp sensor, indoor temp sensor, freeze control sensor and 2x RJ-11 plug that goes to your thermostat and an additional A/C.Additional Info:
Box Dimensions : 6 ⅜"W x 6 ⅜"D x 2"H
Additional Part# : 3312226.000
Compatible with:
Air Conditioners: B59530, B57915, B59516, 640310, 640315, 640316Thermostats: 3314082.000 and 3314082.011
Air Conditioner Control Board; Comfort Control Center II; For Dometic Duo-Therm Air Conditioners And Comfort Control Center II Thermostats; Multi-Zone; Part Number 3312020.000
Dometic™ Duo-Therm 3312020.000 OEM CCC2 Air Conditioner Control Box
This is a replacement control box for current generation Dometic air conditioners. The control board inside the control box is compatible with Dometic's Comfort Control Center 2 thermostats. This control box has wires for a 12V connection, furnace control, load shed, and 120V connection. Compatible with a 6 pin air conditioner plug, 3 pin heat strip plug (optional), outdoor temp sensor, indoor temp sensor, freeze control sensor and 2x RJ-11 plug that goes to your thermostat and an additional A/C.Additional Info:
Box Dimensions : 6 ⅜"W x 6 ⅜"D x 2"H
Additional Part# : 3312226.000
Compatible with:
Air Conditioners: B59530, B57915, B59516, 640310, 640315, 640316Thermostats: 3314082.000 and 3314082.011
$204.85
Dometic™ Duo-Therm 9610005382/ 3312020.000 OEM CCC2 Air Conditioner Control Box—
$204.85
Description
Air Conditioner Control Board; Comfort Control Center II; For Dometic Duo-Therm Air Conditioners And Comfort Control Center II Thermostats; Multi-Zone; Part Number 3312020.000
Dometic™ Duo-Therm 3312020.000 OEM CCC2 Air Conditioner Control Box
This is a replacement control box for current generation Dometic air conditioners. The control board inside the control box is compatible with Dometic's Comfort Control Center 2 thermostats. This control box has wires for a 12V connection, furnace control, load shed, and 120V connection. Compatible with a 6 pin air conditioner plug, 3 pin heat strip plug (optional), outdoor temp sensor, indoor temp sensor, freeze control sensor and 2x RJ-11 plug that goes to your thermostat and an additional A/C.Additional Info:
Box Dimensions : 6 ⅜"W x 6 ⅜"D x 2"H
Additional Part# : 3312226.000
Compatible with:
Air Conditioners: B59530, B57915, B59516, 640310, 640315, 640316Thermostats: 3314082.000 and 3314082.011
