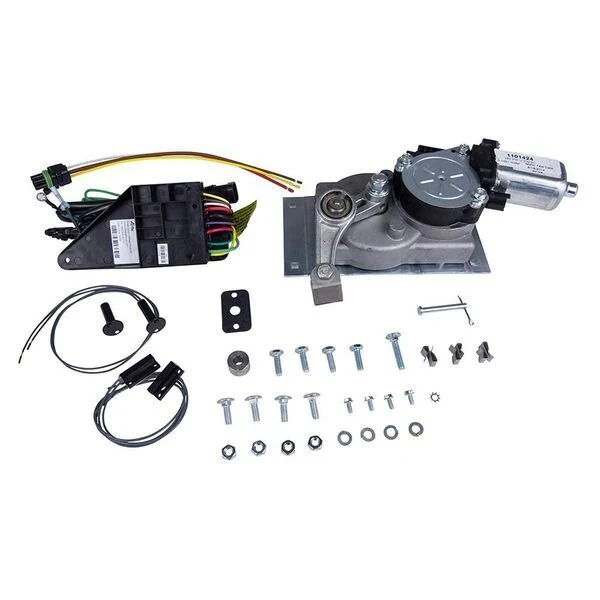

Entry Step Motor/ Gearbox Upgrade; Upgrade Kit For Series Steps 22/ 23/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40 Without IMGL Control Components; With IMGL (Integrated Motor/ Gear Box/ Linkage A) Step Motor/ Cotter Pin And Clevis Pin/ "A" Linkage Gear Box/ 4-Way Pigtail Fasteners/ Door Switch; Kwikee Part Number 909770000

• Compatibility: Kwikee 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40 Series Steps
• With Pin And Clevis Kit: Yes
• With Linkage: Yes
• With Control Unit: Yes
• With Pigtails: Yes
• With Door Switch: Yes
• With Mounting Hardware: Yes

Upgrade your outdated style motor and control board to the new, current style.The Kwikee® Step Motor, Gearbox Upgrade kit is an electric step improvement.

• The Integrated Motor/Gear Box/Linkage (IMGL) offers improved performance and longer life.
• 40% more motor torque gives step a strong lock-out and solid feel.
• Fully-sealed dual ball bearing improves efficiency and requires no maintenance. Case halves seal to keep consistent alignment and protect gear from the elements.
• Investment cast zinc-plated steel linkage assembly is strong and more resistant to corrosion. The brass spherical outer cage hardened ball in the linkage is stronger, wears longer and will not oblong.
• The 9510 Control Unit keeps the step open when the door is open. Step can be locked in the extended position, but cannot be locked in the retracted position. Automatic ignition override makes step follow the door.
• The kwikee step motor conversion kit by Lippert Components is specifically designed for series 22, 23, 28a(part 902829XXX), 30, 32, 33, 34, 35, 36, 38, 40 Kwikee Electric steps.
• Unit Weight: 8.20 lb
