Thetford 94224

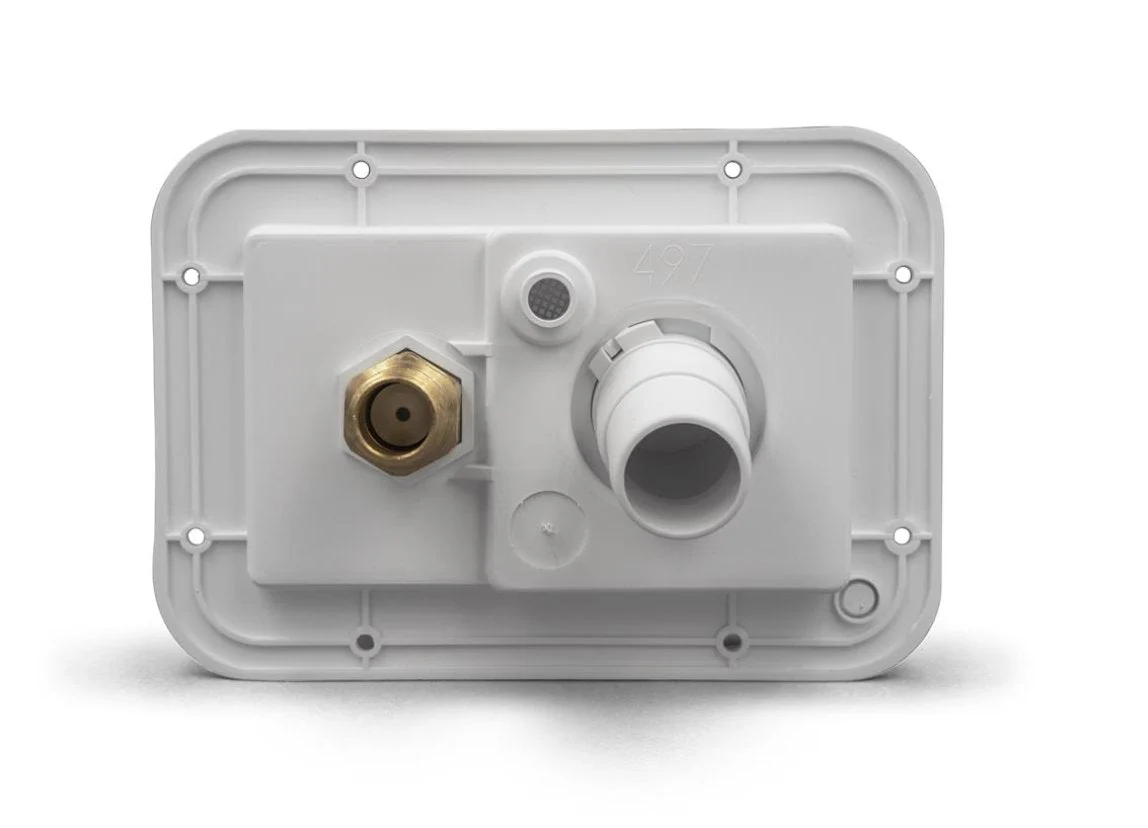

Fresh Water Inlet; Used For RV Fresh Water System; Gravity Hatch Without Door; Use With Either 1-1/4 Inch Or 1-3/8 Inch Water Fill Hose; 3-3/4 Inch Height x 6 Inch Width Cutout Dimension; 5-5/16 Inch Height x 7-9/16 Inch Width Outside Dimension x 2-1/2 Inch Depth; Lead Free Brass City Check Valve With 1/2 Inch Male Pipe Thread (MPT); Polar White; UV And Impact Resistant; IAPMO/ NSF/ CSA/ TEI Certified; With 3/8 Inch Tank Vent Connection; B&B Cross Reference 497-AD-26-A

B&B Molders is a one-stop shop for injection molded products. Our state-of-the-art material handling system and year-round climate-controlled manufacturing environment ensures resin and molding conditions are optimized for consistent results. From product design and tool build, to manufacturing and assembly, we produce innovative products that meet the demanding requirements of a wide range of industries including military and medical. We are focused, experienced and innovative.

• Type: Gravity
• Inlet Size: 1/2 Inch
• Inlet Connection Type: Male Threads
• Outlet Size: OEM
• Outlet Connection Type: Not Applicable
• Diameter (IN): Not Applicable
• Width (IN): 7-9/16 Inch
• Height (IN): 5-5/16 Inch
• Color: Polar White
• Material: Brass
• Cutout Size (IN): 3-3/4 Inch Height X 6 Inch Width
• With Built-In Check Valve: Yes
• With Dust Plug: Yes
